The Xellanz Voldac macerator makes it possible to install a toilet in a location without a standard drain. The device macerates the toilet waste and pumps it away under pressure through a thin pipe.
Design & construction

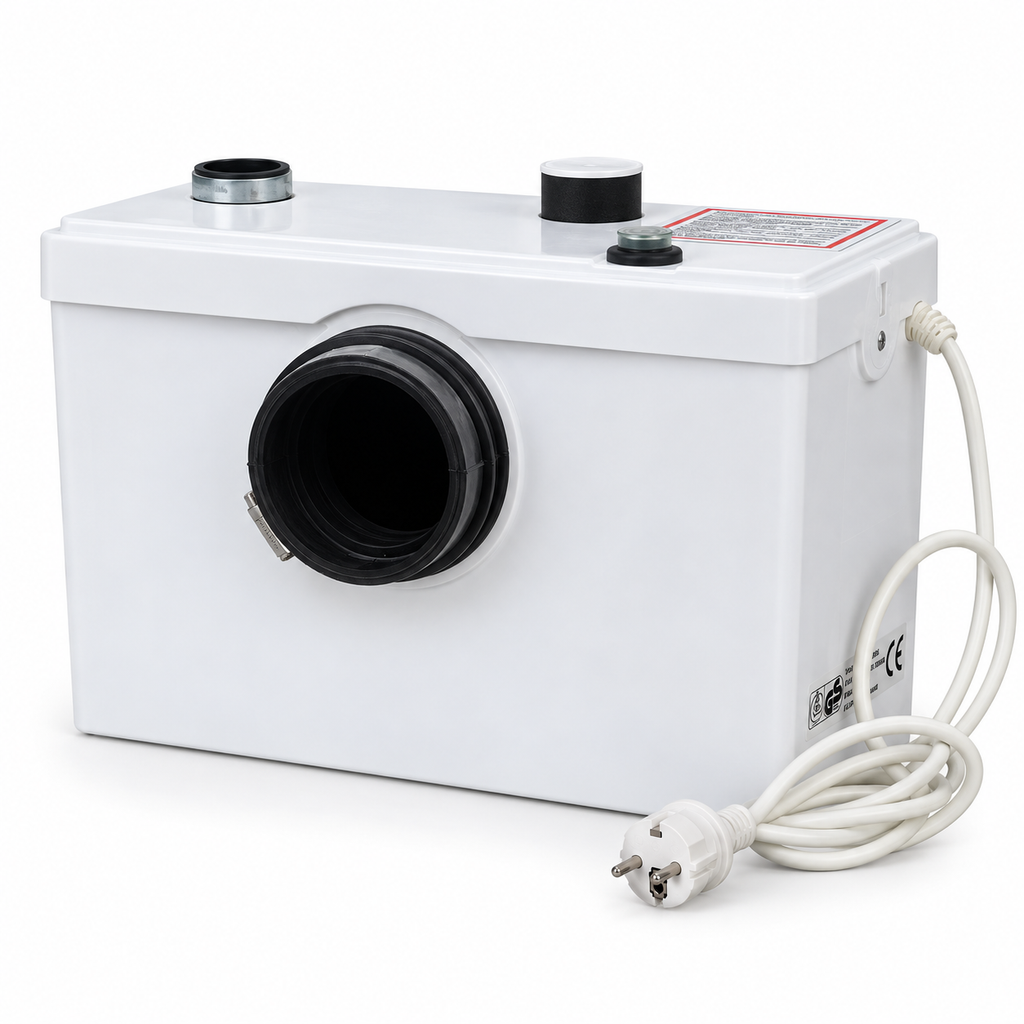

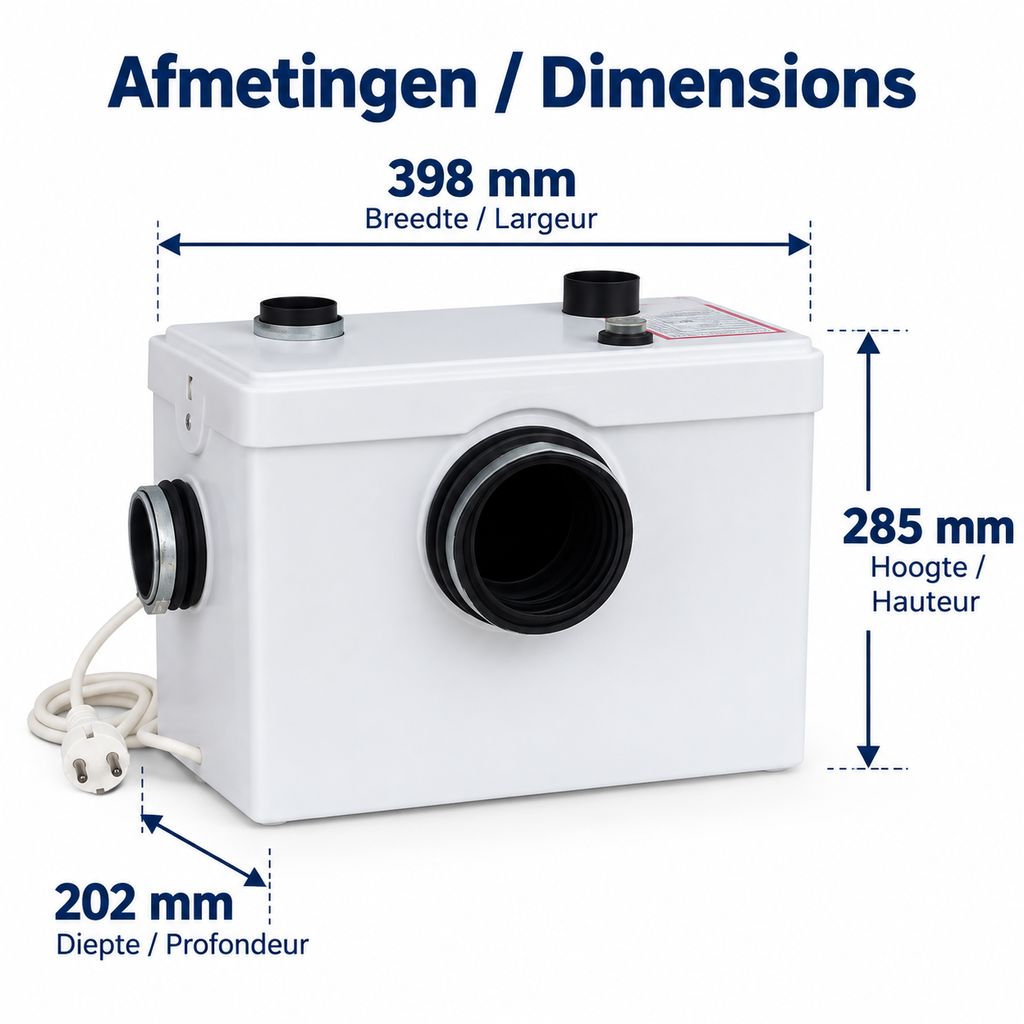

The unit has a white plastic housing and measures 398 × 202 × 285 mm (width × depth × height). Thanks to its compact design, it fits directly behind a floor-standing toilet and remains largely out of sight. The round toilet connection is located on the front. The device is supplied with a power cord and plug.
Application & compatibility

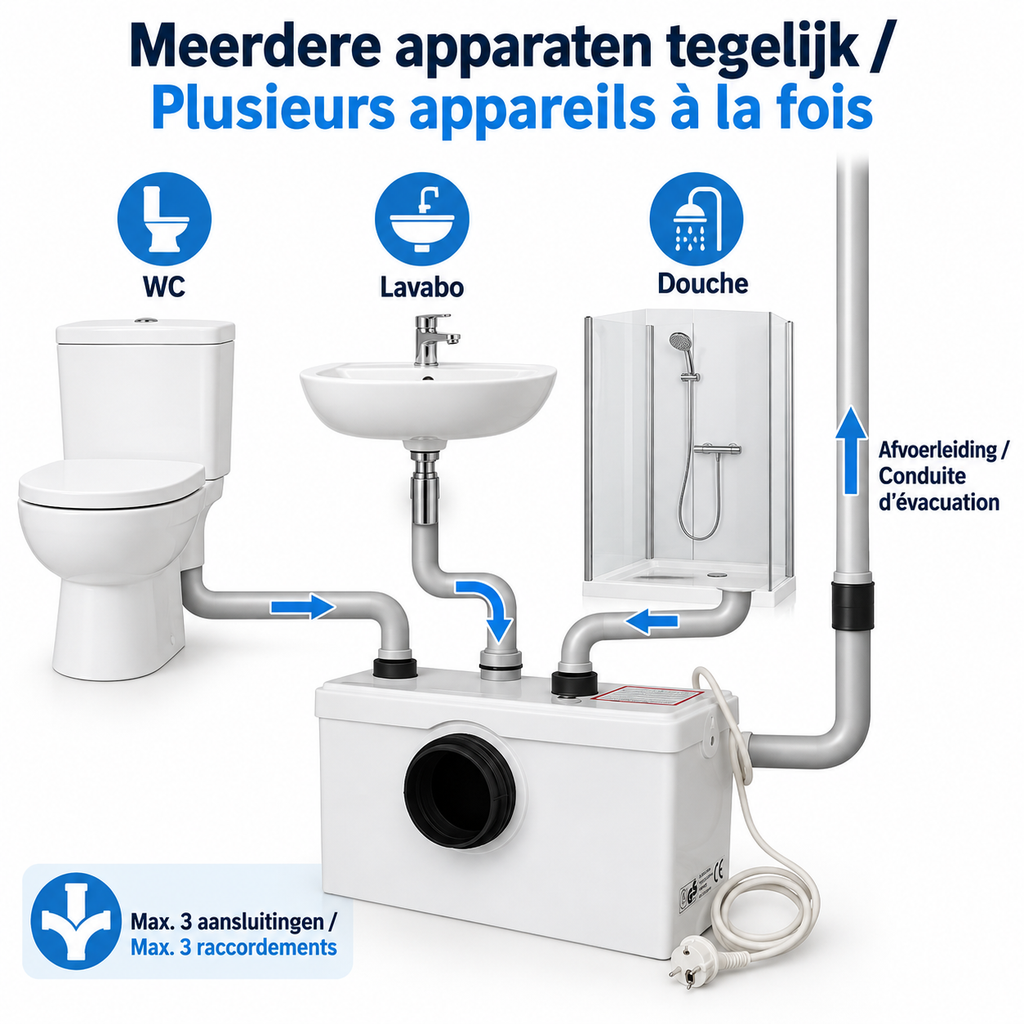

The toilet macerator is intended for situations in which a toilet cannot be connected directly to the main stack, for example in an attic, basement, or utility room. The device pumps the macerated wastewater up to 6.5 metres vertically and up to 60 metres horizontally, making it possible to install a toilet below the level of the main sewer system. The unit has three connection points, so a washbasin or another sanitary drain can often be connected alongside the toilet. Whether this is possible in your situation depends on the installation plan and the pipe run.
Installation & use

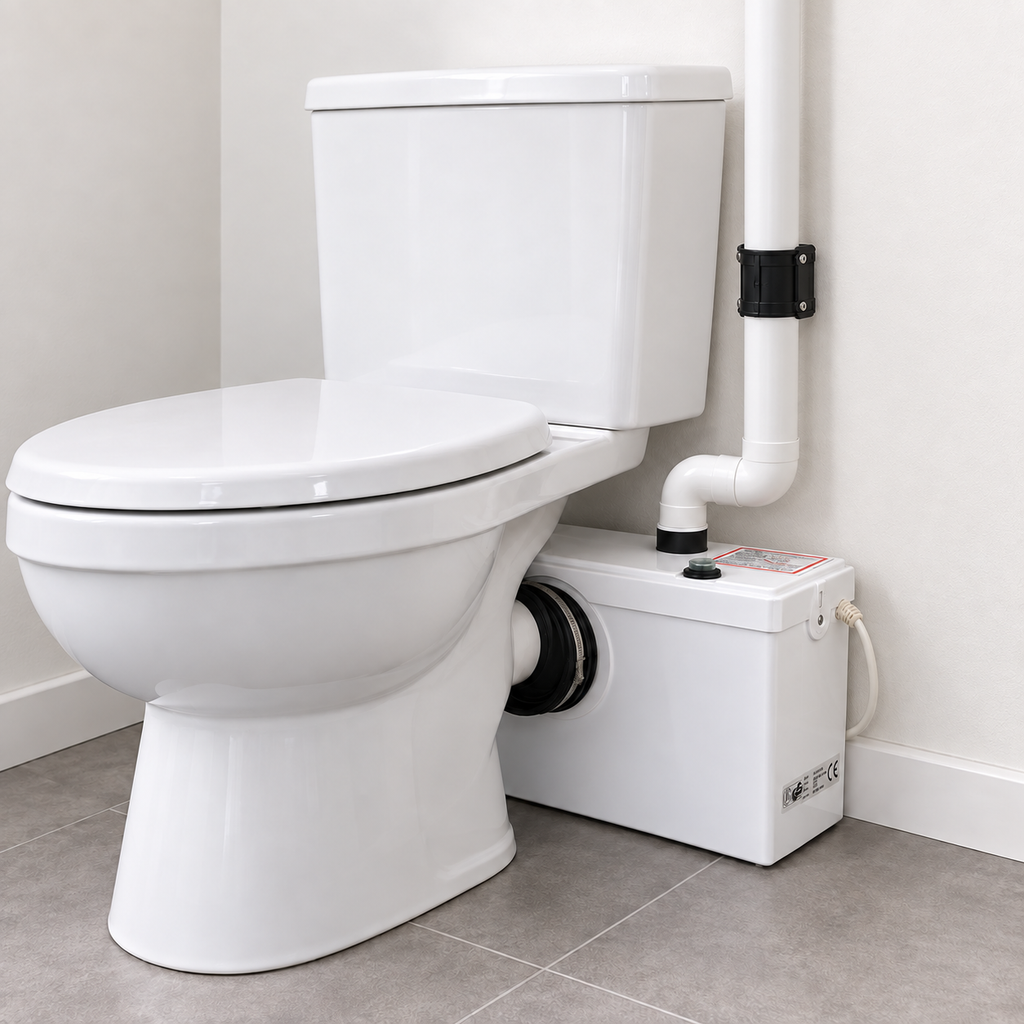

The unit is placed directly behind the toilet and connected to the toilet's drain. For the power supply, a nearby socket is sufficient: the device has a power cord and plug, so a separate electrical installation is not required. Because the wastewater is pumped away through a thin pipe, the amount of breaking work required in floors and walls is kept to a minimum. For the final pipe dimensions, placement, and connection sequence, refer to the manufacturer's installation manual.

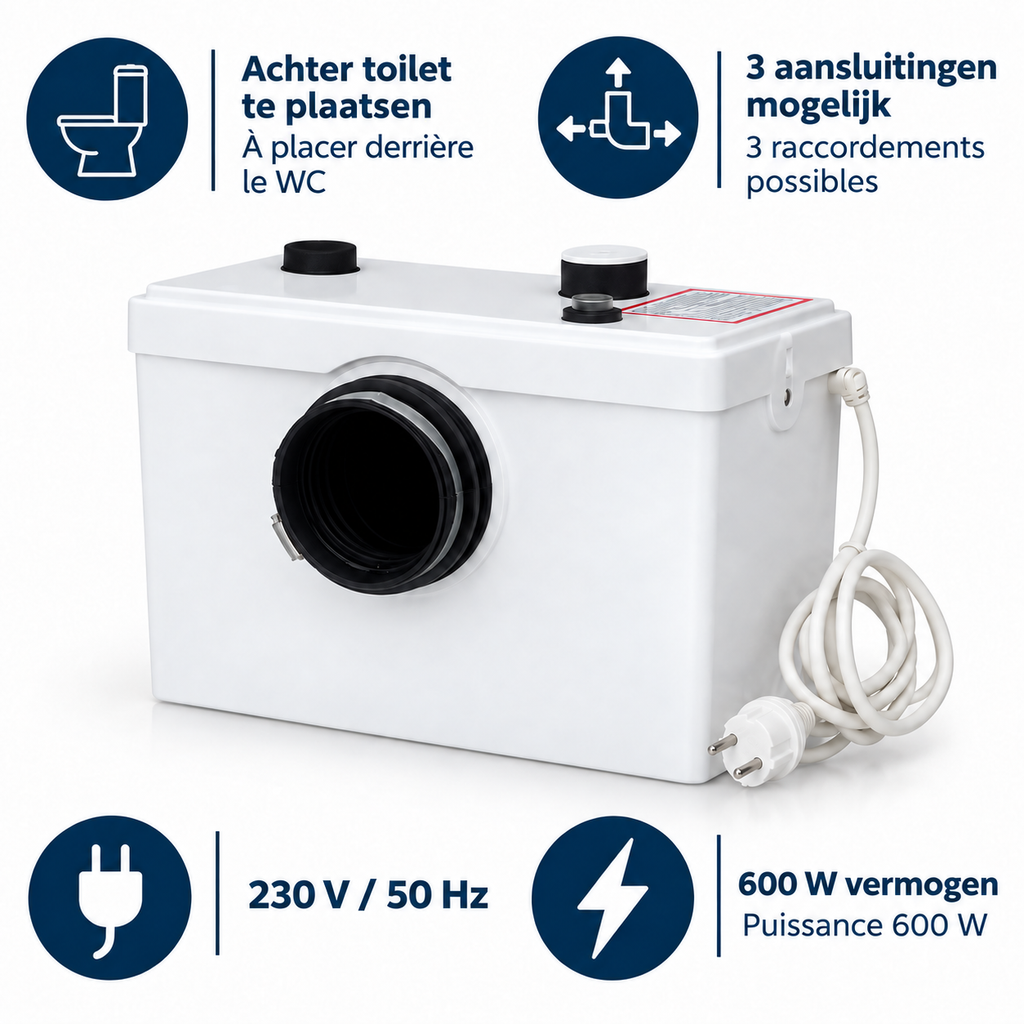

Key features
- Macerates toilet waste and pumps it away under pressure through a thin pipe
- 600 W electric pump operating at 220-230 V and 50 Hz
- Vertical lift height up to 6.5 metres
- Horizontal discharge distance up to 60 metres
- Three connection points for the toilet and additional sanitary fixtures
- White plastic housing measuring 398 × 202 × 285 mm
- Supplied with a power cord and plug
Technical specifications
| Brand |
Xellanz |
| Series |
Voldac |
| Item number |
10110 |
| EAN |
5400319101101 |
| Product type |
Toilet macerator |
| Voltage |
220-230 V |
| Frequency |
50 Hz |
| Power |
600 W |
| Maximum current |
3 A |
| Vertical lift height |
Up to 6.5 m |
| Horizontal discharge distance |
Up to 60 m |
| Connection points |
3 |
| Dimensions (w × d × h) |
398 × 202 × 285 mm |
| Housing material |
Plastic |
| Colour |
White |
| Electrical connection |
Power cord and plug |
Frequently asked questions
How far can this toilet macerator pump wastewater? Up to 6.5 metres vertically and up to 60 metres horizontally. Check the actual pipe run using the installation manual.
Can I connect additional sanitary fixtures besides the toilet? The unit has three connection points, so a washbasin can often be connected as well. Whether this is possible in your situation depends on the installation plan and the pipe run.
Do I need a separate electrical installation? No. The toilet macerator has a power cord and plug, so a socket near the toilet is sufficient.
How much space do I need behind the toilet? The housing measures 398 × 202 × 285 mm (width × depth × height). In addition, leave enough space for the connections and the power cord.
